PDE Toolboxで構造解析

www.youtube.com

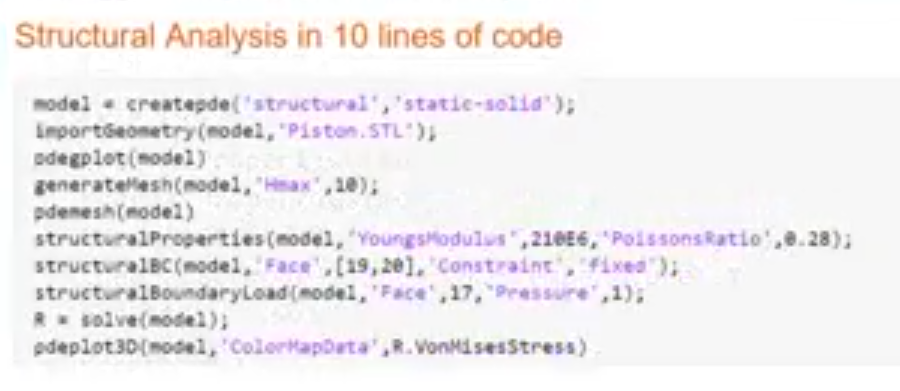

clear; close all; clc;
model = createpde('structural', 'static-solid');
importGeometry(model, 'piston.stl');

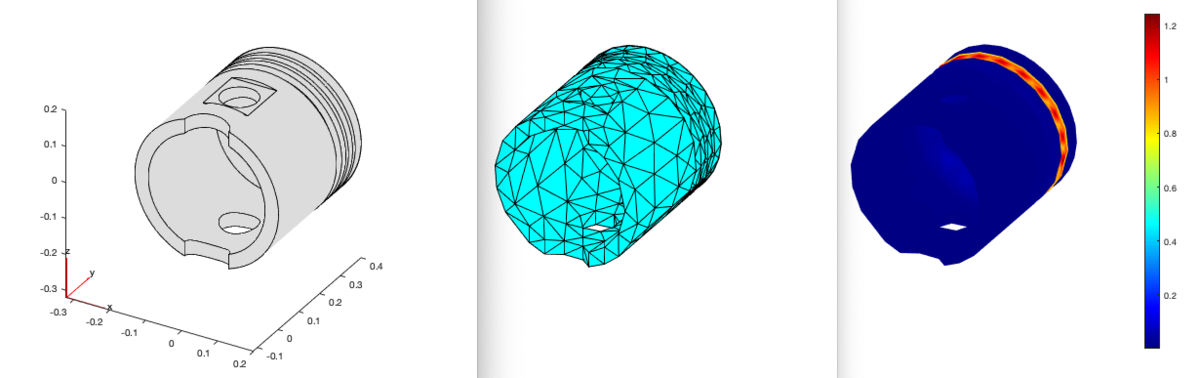

pdegplot(model);
figure();
generateMesh(model, 'Hmax', 10, 'Hmin', 0.05);
pdemesh(model);
figure();
structuralProperties(model, 'YoungsModulus', 210E6, 'PoissonsRatio', 0.28);
structuralBC(model, 'Face', [19 20], 'Constraint', 'fixed');
structuralBoundaryLoad(model, 'Face', 17, 'Pressure', 1);
R = solve(model);
pdeplot3D(model, 'ColorMapData', R.VonMisesStress);
